Product overview:The fixed axle weight scale is a metering equipment which measures the axle (group)……

Service hotline

13806121725

Product details

blob

Product overview:

The fixed axle weight scale is a metering equipment which measures the axle (group) weight of the vehicle respectively and then accumulates the weight of the vehicle (total weight).

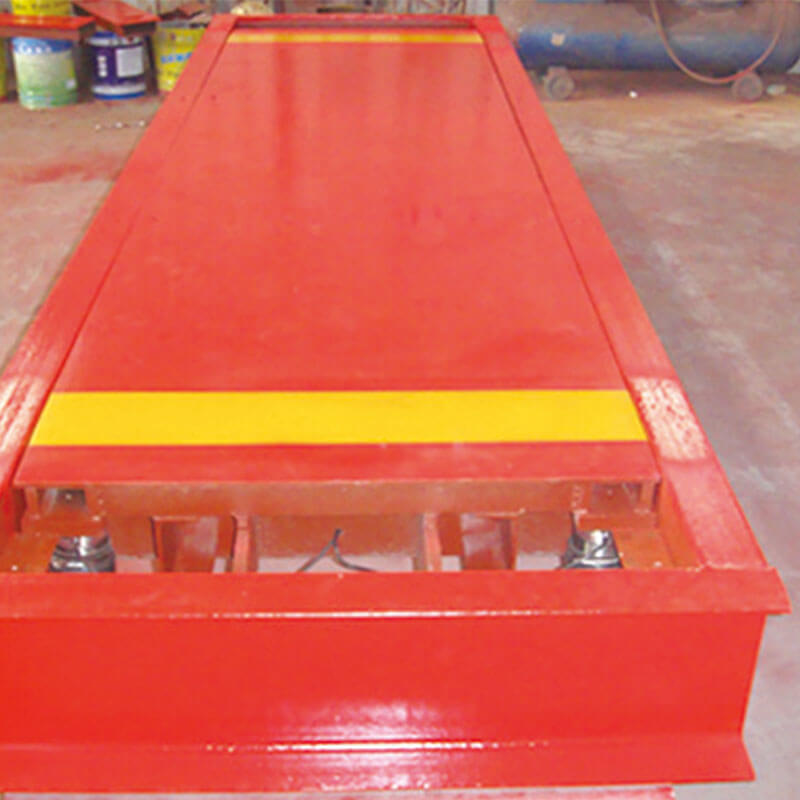

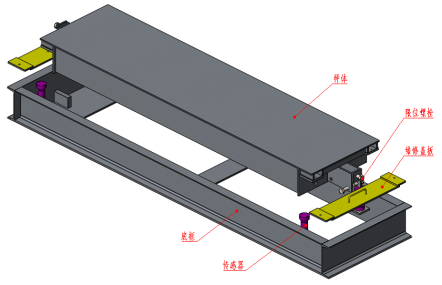

It is mainly composed of scale platform, bottom frame (embedded into the cement floor), limit device, sensor, instrument, junction box and other components. Printer, computer, voltage regulator, power surge and other external equipment can be selected to form a perfect system.

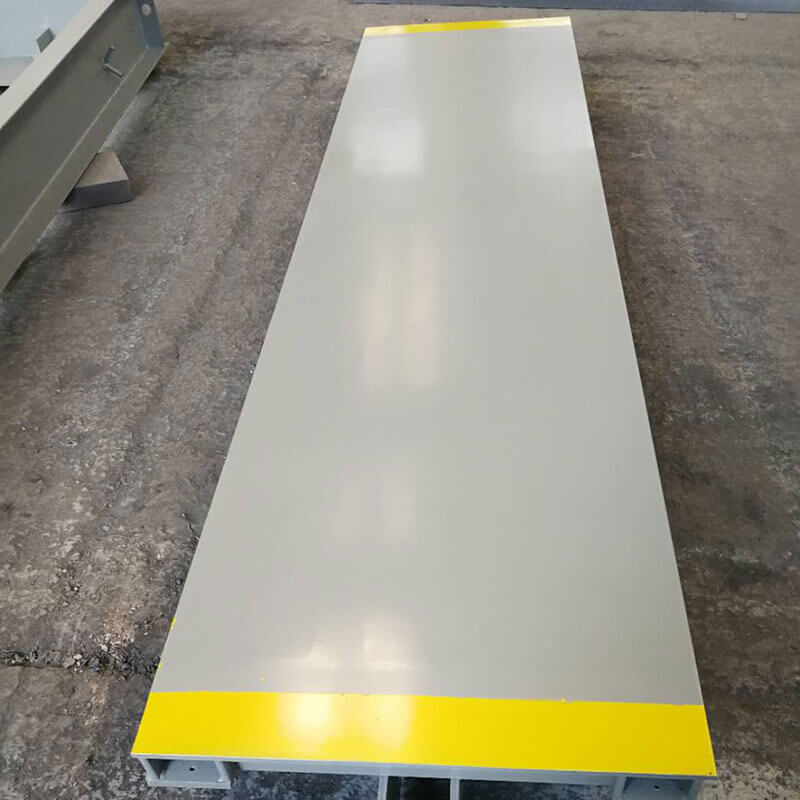

The platform is a frame structure composed of steel plate and section steel welded seamlessly.

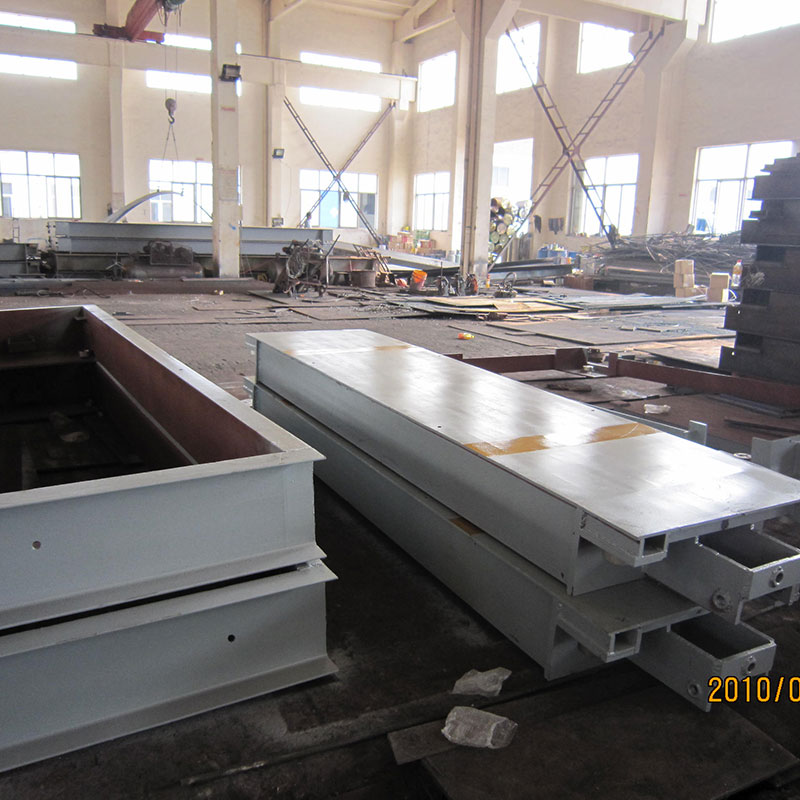

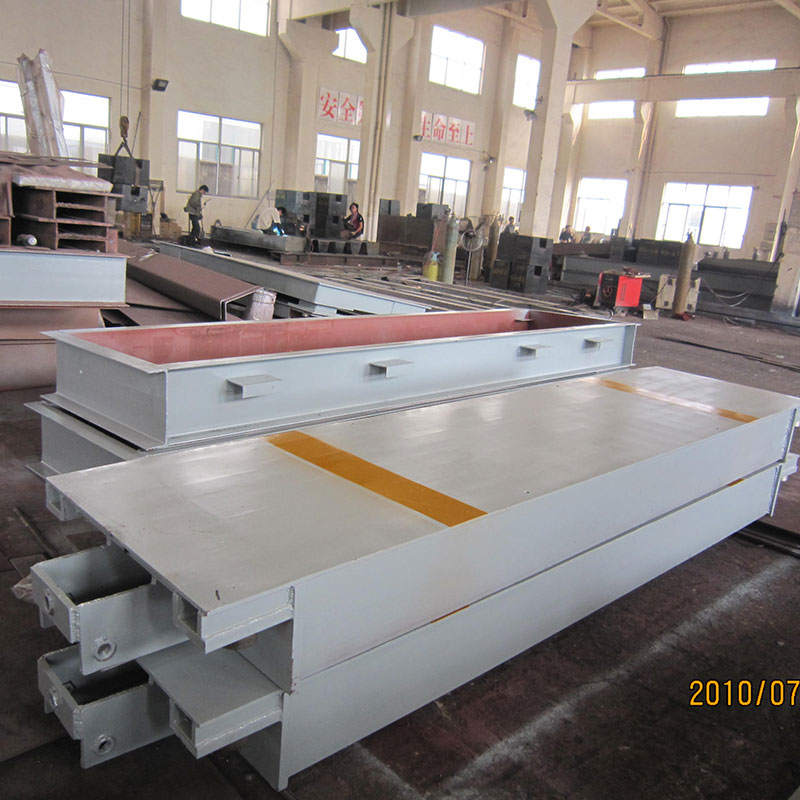

During manufacturing, the CNC plasma cutting machine and sawing machine are used to cut the section steel to ensure the dimensional accuracy of the product.

Welding using automatic welding machine for one-time Seiko welding, to ensure the weld strength and weld appearance.

Weighing quickly and accurately, easy maintenance. Easy to operate, long-term stability.

The scale body surface uses the large shot blasting machine to carry on the whole shot blasting, and carries on the paint spraying within 2 hours, guarantees the product waterproof, the corrosion resistance ability.

Applicable occasions:

It is suitable for weighing materials in construction, forestry, energy, metallurgy, environmental protection (garbage treatment), factories, mines, logistics and other industries, which covers a small area, requires a small amount of basic construction and various kinds of automobiles.

It is used for the measurement of vehicle weight in fixed road section by the traffic department, or the self-inspection load measurement of vehicles managed by the industries of logistics, industry and mining.

Precision grade	Weighing scale	The length of the	The width of the	The installation height	The power supply
Ⅲlevel	10~200t	2~4m	0.6~3m	315mm	220V 50HZ

The level of accuracy: OIML Ⅲ

Weighing: 10T-200T Single axis weighing: 30T

Dynamic: uniform speed: total weight accuracy class 2 (speed ≤5km/h)

Axle load accuracy class D (0.3%-1%) (speed ≤5km/h)

Working temperature: Weighing display instrument: -10 ~ +40℃

Weight sensor: -30 ~ +65℃

Safety overload: 130% F.S.

Relative temperature: < 95%

Working power supply: 220V/50Hz

Protection grade: IP68

Note: uneven road conditions, obvious speed change, braking and other conditions will reduce the accuracy
