E0522-YP Sell like hot cakes

Design customization Production and processing Rich in experience After-sales service

1. Technical features:A. explosion-proof marks: Exib Ⅱ CT4B. accuracy levels: ⅢC. Main: stainless st……

Service hotline

13806121725

Product details

1. Technical features:

A. explosion-proof marks: Exib Ⅱ CT4

B. accuracy levels: Ⅲ

C. Main: stainless steel (304) scale body, main board, the safety type sensor (explosion-proof mark Exia Ⅱ CT6), in the battery pack (code DE0823).

D. Main features:

● Weighing range: 30g~2KG, accuracy: 30000, weighing plate size: 130mm

● Automatic zero clearance, automatic peeling, automatic shutdown

● Weighing response speed, reliable accuracy, simple operation, easy maintenance

● With general weighing and counting weighing function

● 13 kinds of weighing unit conversion function

● Safety overload: 150%FS

● Display mode: 6 bit code type LCD, green backlight.

● Charging mode: the whole machine charging, charging process must be carried out in the safety zone.

● Super low power consumption, super long standby (full flush can stand by for about 60 hours).

● High precision A/D converter.

● Display resolution 1000~200000.

2, typical application: petroleum, chemical, pharmaceutical, smelting, coking, gunpowder, granary, paint, flour mill, finishing and other occasions (can refer to the dangerous environment confirmation table).

3. Scope of supply:

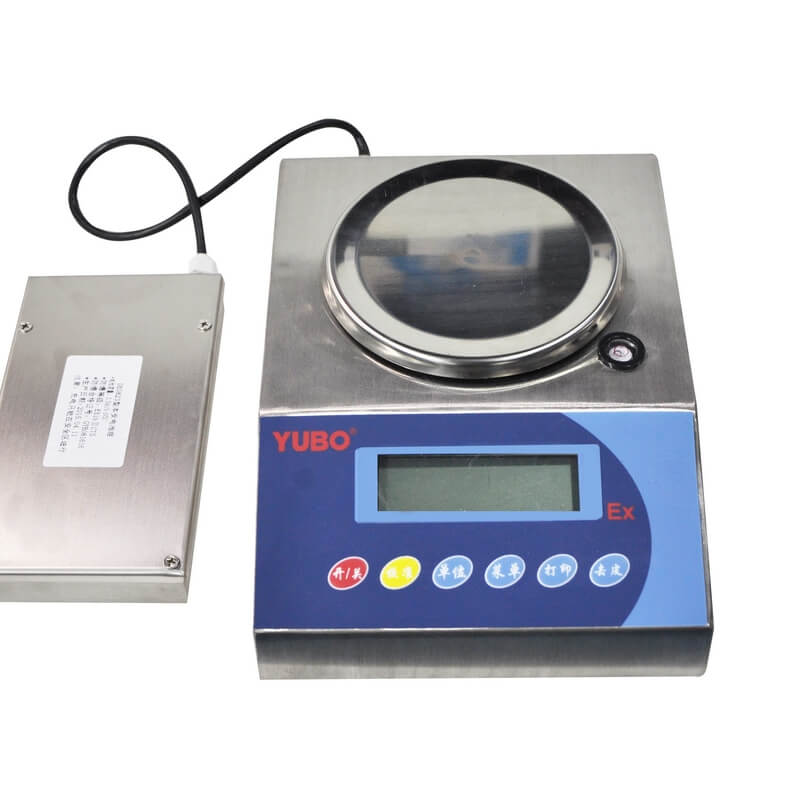

A. A set of LCD display intrinsically safe case scales (including scale body, motherboard, intrinsically safe sensor and intrinsically safe battery pack)

B. A set of chargers

C. A set of technical manuals for safety case scales.

D. RS-232 interface is optional, configured with a special printer, connected to a PC to achieve data printing and management.

E. Optionally equipped with intrinsically safe AC/DC explosion-proof power supply (code AE0821) for 24 hours uninterrupted power supply.
