Product overview：

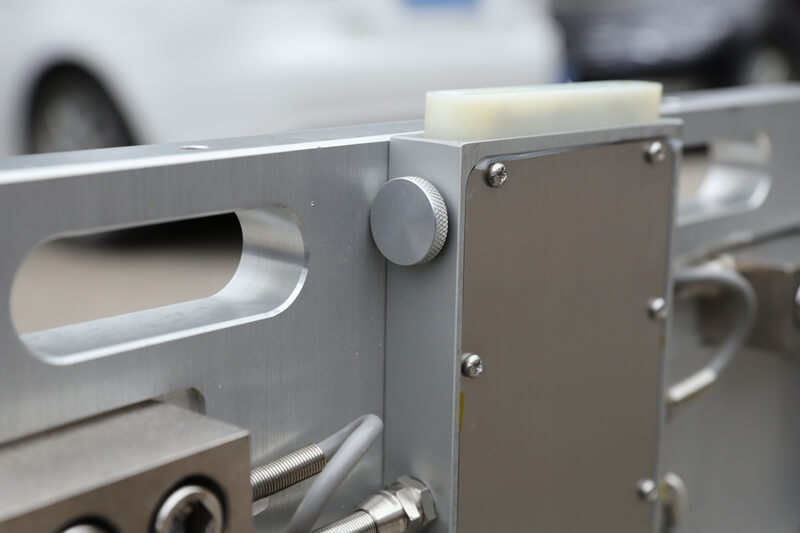

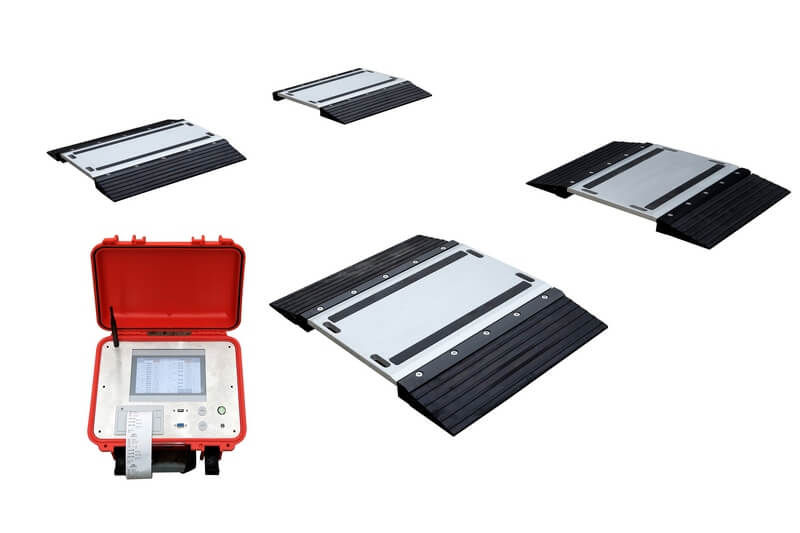

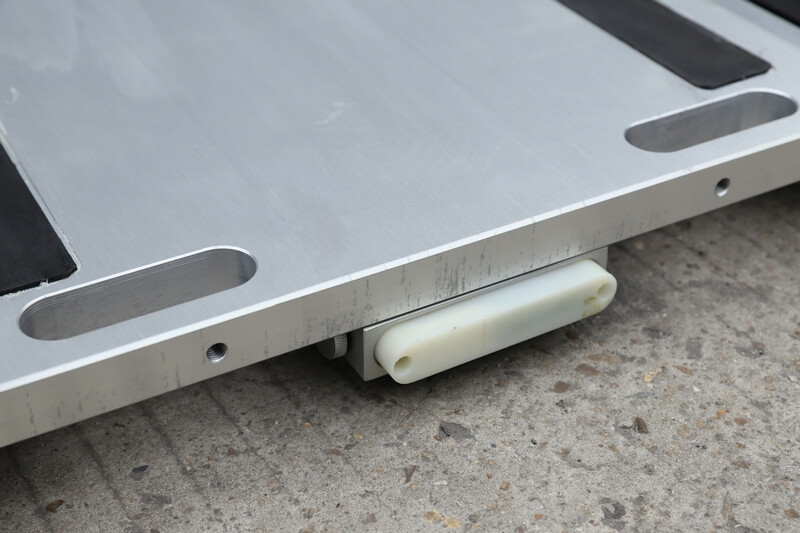

According to the market feedback and demand information, our company timely launched this variety of variable S series axle load balance products. This series of products are made of aluminum alloy plate and fixed beam produced by German BASHIFU company with high precision and large tonnage extrusion equipment. The whole structure is simple, light, firm, beautiful and easy to maintain. The strain gauge produced by Germany HBM company is used for the sensor with high accuracy, good high and low temperature characteristics and good waterproof performance. The high-precision hydraulic force measuring machine with large tonnage is used for multi-point linear calibration, and the theoretical accuracy can reach 0.03%. It is a portable axle load scale with high precision, which can completely replace the truck scale in use occasions. In the aspect of wireless signal processing, the company is equipped with the unique design of the signal transmitting and receiving system, which has high sensitivity, signal receiving spirit, strong anti-interference ability, fast information processing, high system compatibility and sustainable upgrading.

Application fields:

1. Enforcement and supervision of overloading by traffic police and road administration; Overflow control inspection at high-speed entrance.

2. It can be used in enterprises, construction industry, wharf, warehousing, logistics and other industries

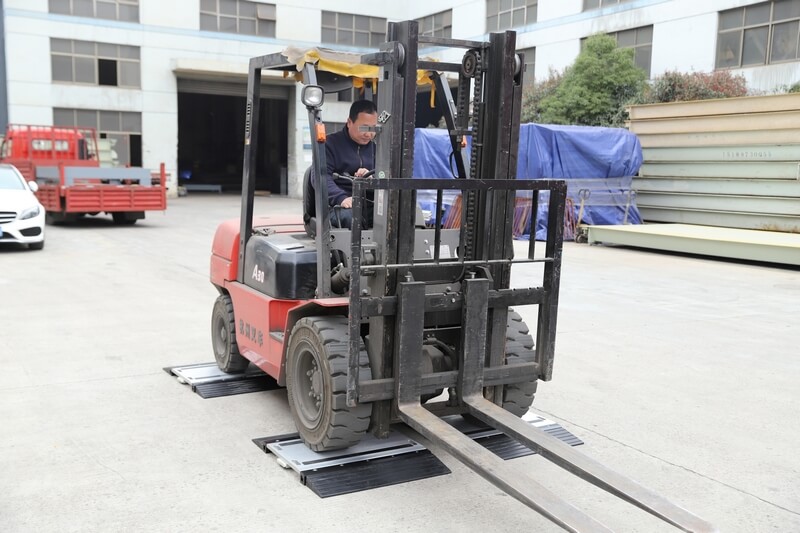

3. Can be used for wheeled vehicles (including aircraft) wheel weight, axle weight, total weight, etc., extremely high precision weighing, custom range is wide;

4. It can be used as high precision weighing module in enterprises, schools and postgraduate entrance examination units.

5.. Multiple board combination, can be dynamic/static interactive use, not only convenient to carry, but also has the function of truck scale.

未標題-2

Mesa series( mm)	Name	Size( mm)	Range (t)	Weight (kg/slice)
500*400	1.Scale table with straight beam	50051058	1～10	25
	Rubber guide slope	50018045		3.8
	2.With integrated aluminum alloy ramp scale	50065058	1～10	30
720*450	1.Weighing body with straight beam	72055058	2～25	38
	Oblique rubber lead slope	72018045		5.4
	2.With integrated aluminum alloy ramp scale	72069058	2～25	46
	3. Can be equipped with transition plate weighing platform	72069058	2～25	42
	Transition rubber sheet for coupling car	72050040		18
Support non-standard customization (including explosion-proof occasions)

Product performance:

1. Weighing range: single sheet weighing: 1 t ~ 30 t, axle load: ≤60 t;

2. Accuracy grade: static weighing: 0.1% F.S; Dynamic weighing: +/- 2%F.S. (with transition plate)

3 overload capacity: safety overload: 120%; Limit overload: 150%.

4. Temperature Range: -30/80 degree C;

5. Waterproof rating: IP68

6. Signal processing: wireless transmission/wired transmission, support a table unlimited connection to multiple weighing board.

7. Support the installation of automatic license plate recognition system, rich storage models, optional.

8. Ultra high precision weighing crossover: it can be used as a portable mobile truck scale, but also as a high-end static weighing platform system.

Accessories selection:

1. Transition connecting plate for coupling axle vehicle (it can improve the ride comfort of vehicle after use, especially the dynamic weighing accuracy can be improved to within 1-2%)

2. Sensor, large screen, printer, scanner, battery, car charger, signal line, weighing software, etc.

3. Scale body, instrument, system, etc. can be customized for customers OEM.
